    Description:
    Stainless steel clad pipe mill is a new welding technology, which coats thin stainless steel on the surface of carbon steel pipe with high strength, the product has the features of both artistic appearance, therefore, corrosion resistance of stainless steel and high strength of carbon steel. It is the best substitute of stainless steel pipe as its lower price comparing with that of stainless steel pipe. Stainless steel clad pipe is widely used in household commodities, shoe racks, public facilities and guardrails such as all kinds of clothes racks, retractable poles, article racks, all purpose combination racks, table and chair legs, indoor handrails, ship and bus racks, and outdoor guardrails.

    Equipment of cald pipe/Tube :

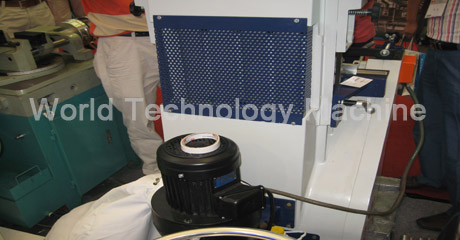

    • Stainless steel clad pipe production line

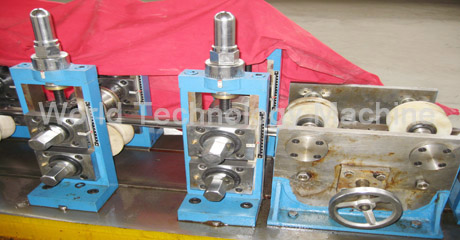

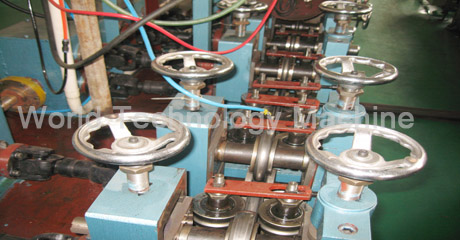

    • Welding part of clad pipe mill

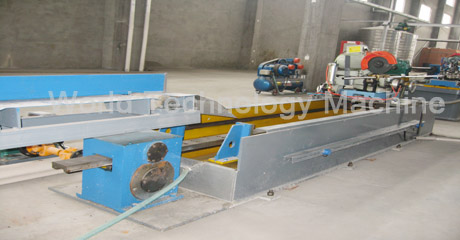

    • End part and flying saw

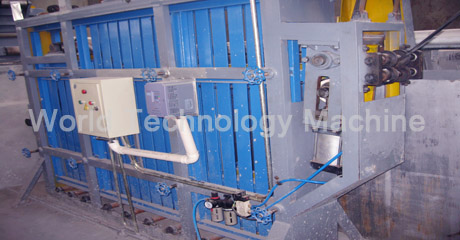

    • Accumulator

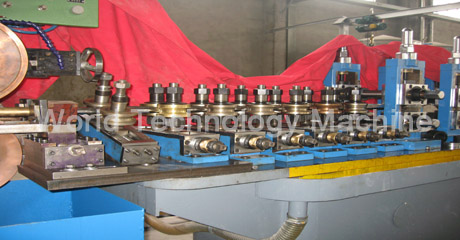

    • Clad pipe making machine

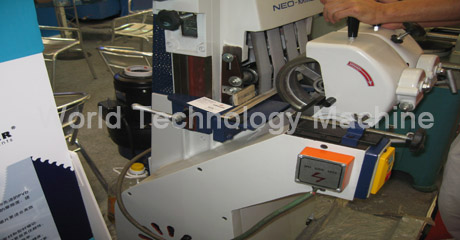

    • Clad pipe mill

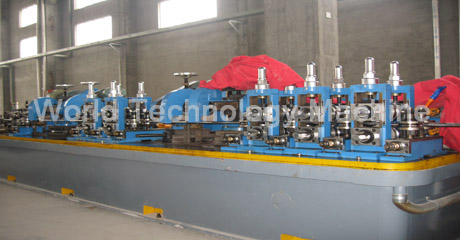

    • Clad tube making machine

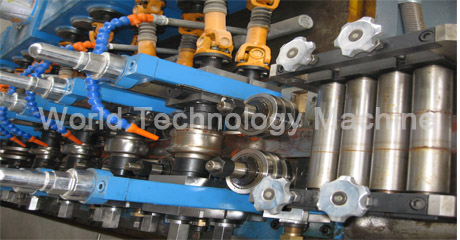

    • Clad tube mill

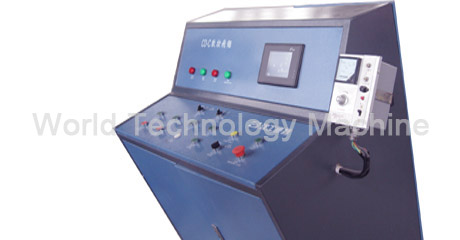

    • Control cabinet of clad tube mill

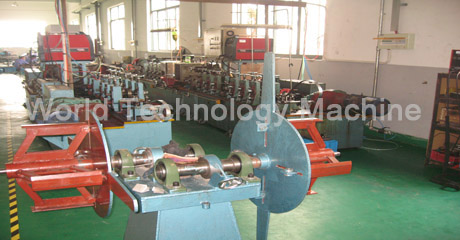

    • Decoiler of clad tube mill

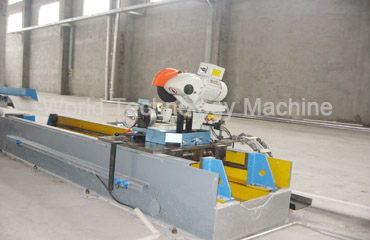

    • Flying saw

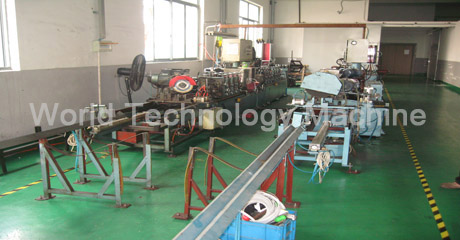

    • High-speed DC inverting seam welding machine

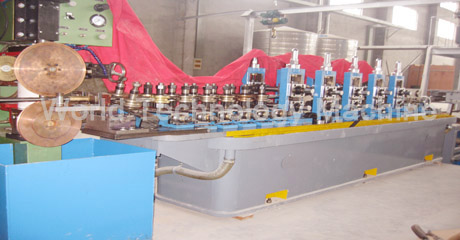

    • Stainless steel clad pipe making machine

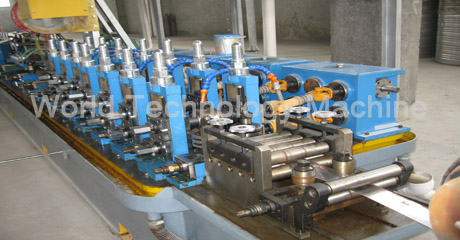

    • Stainless steel clad pipe mill

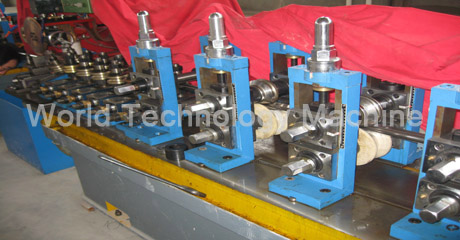

    • Stainless steel clad tube making machine

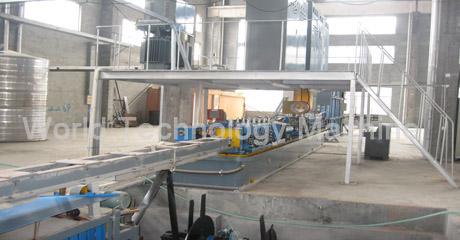

    • Stainless steel cladding mill

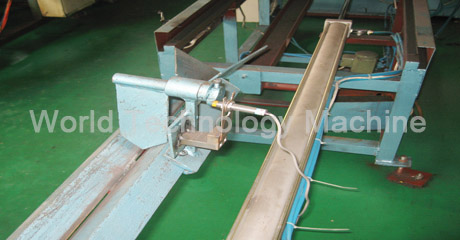

    • Stainless steel spot welding machine


    Description:
    Stainless steel clad pipe mill is a new welding technology, which coats thin stainless steel on the surface of carbon steel pipe with high strength, the product has the features of both artistic appearance, therefore, corrosion resistance of stainless steel and high strength of carbon steel. It is the best substitute of stainless steel pipe as its lower price comparing with that of stainless steel pipe.

    material: carbon steel and low alloy steel
    Model
    Tube
    Material
    Welding speed(m/mim)
    Total power of motor(kw)
    High frequency power(kw)
    Dia.
    (mm)
    Thickness
    (mm)
    σB(mpa)
    σS(mpa)
    WTM-FH10/50
    Φ10-Φ50
    0.5-2.5
    520
    340
    0-15
    70
    100
    WTM-FH20/76
    Φ20-Φ76
    1.5-4.0
    ---
    ---
    0-15
    132
    200
    WTM-FH60-114
    Φ60-Φ114
    1.5-5.0
    ---
    ---
    0-15
    185
    300 or 400

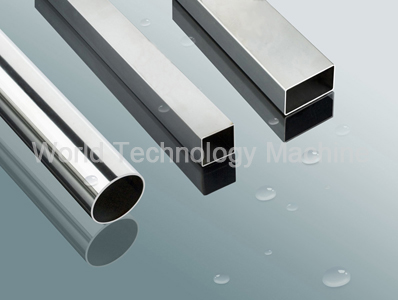

    Clad pipe or tube

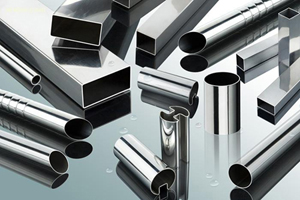

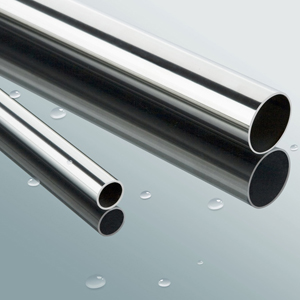

    Stainless steel clad pipes Clad pipes Stainless steel clad tubes

    Detailed description of the stainless steel clad pipe/Tube:

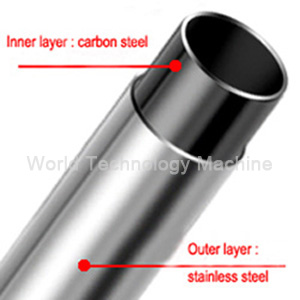

    1) Coating 0.3-0.6mm thickness stainless steel on the surface of carbon steel pipe with the special technology, the product has the features of both artistic appearance, therefore, corrosion resistance of stainless steel and high strength of carbon steel
    2) It is the best substitute of stainless steel pipe as its lower price comparing with that of stainless steel pipe
    3) It is widely used in household commodities, shoe racks, public facilities and guardrails such as all kinds of clothes racks, retractable poles, article racks, all purpose combination racks, table and chair legs, indoor handrails, ship and bus racks, and outdoor guardrails.
    4) The range of pipe diameter is from 15.8mm to 159mm, and the wall thickness of pipe is 0.6mm to 6.0mm.
    5) The wall thickness of carbon steel pipe can be according to requirement of customer to improve the carrying capacity of clad pipe.
    6) The carbon steel pipe can be replaced by galvanized pipe if it is needed to improve the wall strength further, therefore, replace the stainless steel pipe completely
    7) The cut length of the pipe is 6m, which can also be according to customers’ requirement.


    Application:

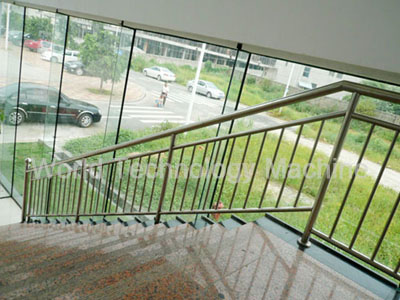

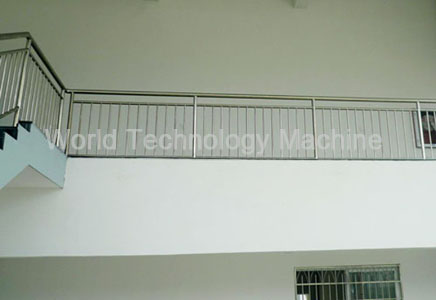

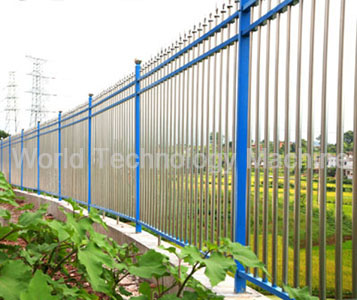

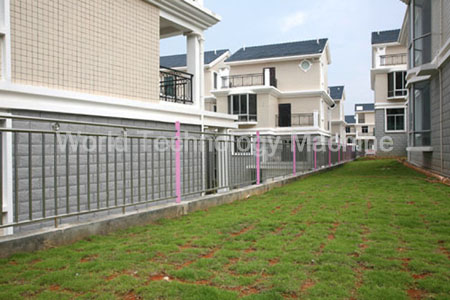

    Combination enclosure Combination grate Handrail of staircase Handrail

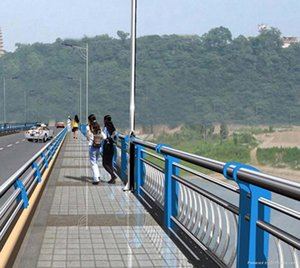

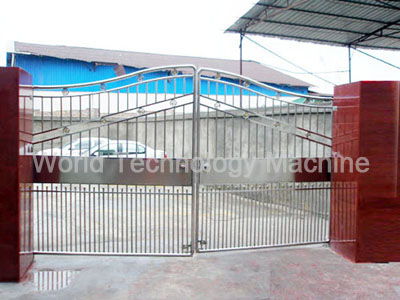

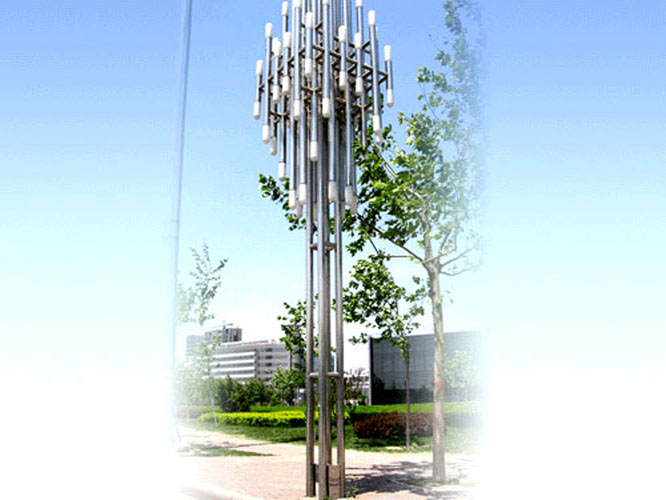

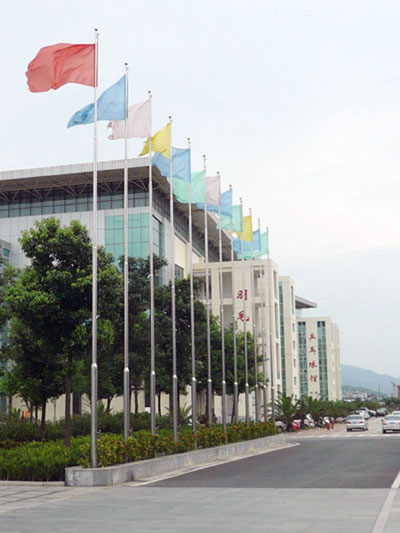

    Gate Flag pole Lamppost for night light Grate
