The hydrostatic testing is the main test segment for the welded tube. With different structural styles, the technological process is almost same: feeding, clamping, water filling, pressure increasing, pressure maintaining, pressure relief, making up a circulate, the machine is controlled bny PLC system, which finish every process and write down the test result automatically.
Specification:
Multi-tubes are tested simultaneously, it is available for 2-6 pieces of tube being tested each time. The efficiency can be improved more than three times;
Apex seal, the length tolerance is allowed;
Chain type or step beam feeding with synchronous feeding and discharging. The hydraulic test head moves forward and backmard quickly, sealing or releasing the tube.
Controlled by PLC;
Write down and print the test result automatically;
The testing pressure can be up to 37Mpa.
The hydrostatic testing is the main test segment for the welded tube. With different structural styles, the technological process is almost same: feeding, clamping, water filling, pressure increasing, pressure maintaining, pressure relief, making up a circulate, the machine is controlled bny PLC system, which finish every process and write down the test result automatically.

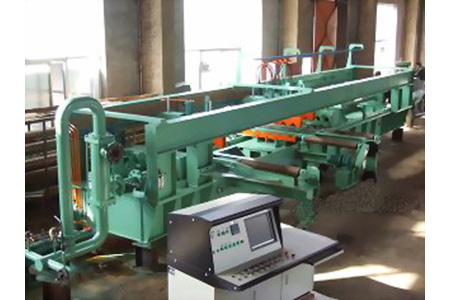

Φ15.9-Φ76 hydrostatic testing machine

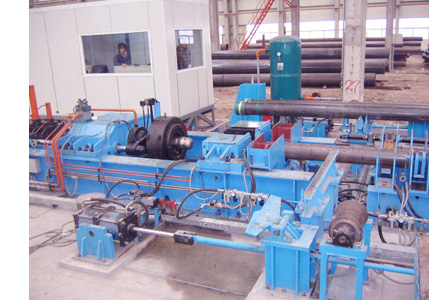

Φ21.3-Φ114 hydrostatic testing machine

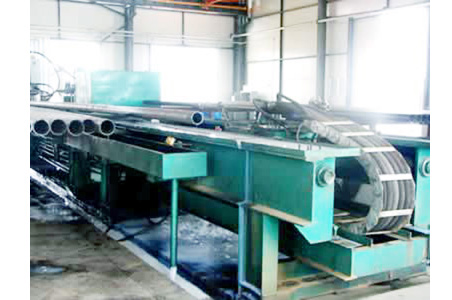

Φ42.2-Φ168.3 hydrostatic testing machine

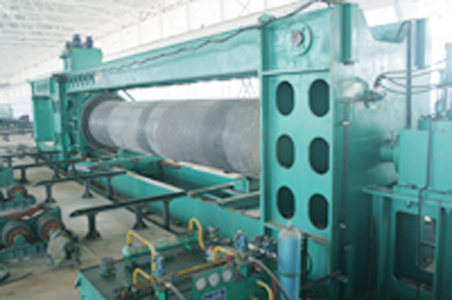

Φ76-Φ219 hydrostatic testing machine

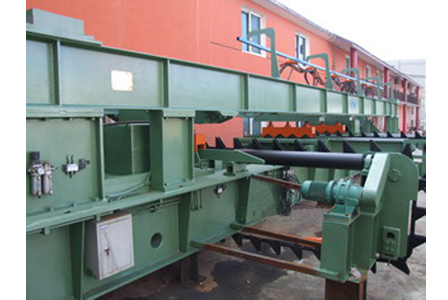

Φ114-Φ762 hydrostatic testing machine

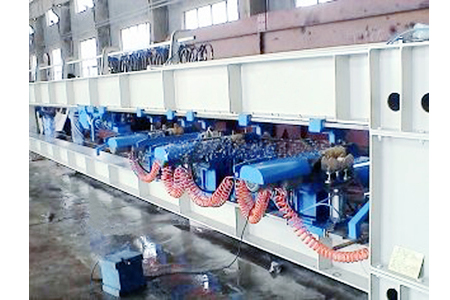

Φ325-Φ1626 hydrostatic testing machine
Specification:
Multi-tubes are tested simultaneously, it is available for 2-6 pieces of tube being tested each time. The efficiency can be improved more than three times;
Apex seal, the length tolerance is allowed;
Chain type or step beam feeding with synchronous feeding and discharging. The hydraulic test head moves forward and backmard quickly, sealing or releasing the tube.
Controlled by PLC;
Write down and print the test result automatically;
The testing pressure can be up to 37Mpa.
Model |
Steel tube dia.(mm) |
Steel tube length(m) |
Max. testing pressure(kg/cm2) |
Max. working capacity( pieces/hour) |
WTM-SY15.9-76 (two-tube type four-tube type six-tube type) |
Φ15.9-Φ76 |
5-7 |
210 |
240, 280, 480, 560, 720 |
WTM-SY21.3-114 (six-tube type) |
Φ21.3-Φ114 |
5-7 |
240, 720 |
|
WTM-SY42.2-168.3 (two-tube type) |
Φ42.2-Φ168.3 |
6-8 |
240 |
|
WTM-SY76-219 (two-tube type) |
Φ76-Φ219 |
6-8 |
320 |
|
WTM-SY114-762 (one-tube type) |
Φ114-Φ762 |
6-8 |
90, 60, 50, 40 |
|
WTM-SY325-1626 (one-tube type) |
Φ325-Φ1626 |
6-12 |
30, 18, 12 |
