spiral accumulator

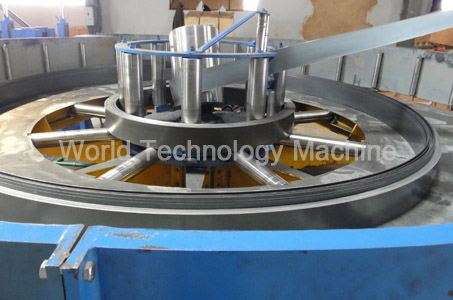

Introduction of the spiral accumulator
Spiral accumulator is an important part of the auxiliary equipment. Usage of the spiral accumulator is to store enough steel strips for the production.

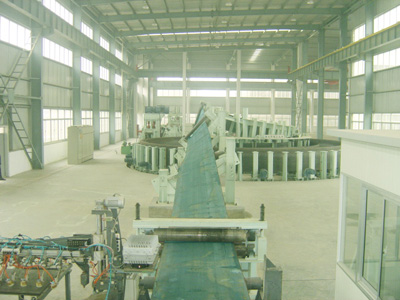

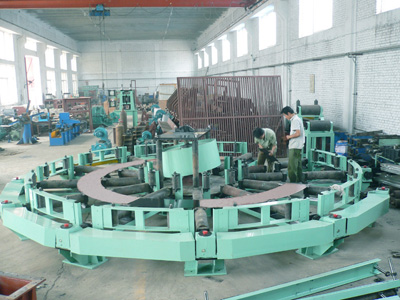

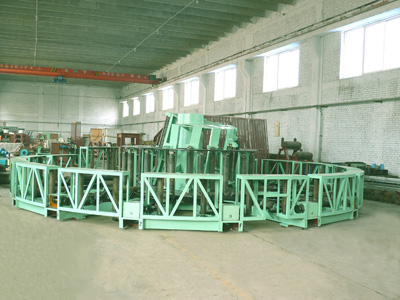

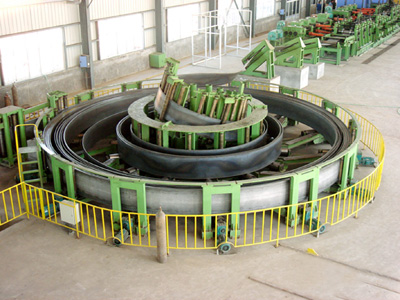

20 spiral accumulator 114 spiral accumulator 325 spiral accumulator 610 spiral accumulator
Introduction of the spiral accumulator
Spiral accumulator is an important part of the auxiliary equipment. Usage of the spiral accumulator is to store enough steel strips for the production.
20 spiral accumulator 114 spiral accumulator 325 spiral accumulator 610 spiral accumulator
Model |
Max tube dia.(mm) |
Material width(mm) |
Material thickness(mm) |
Max capacity (m²) |
Max feeding speed(m/min) |
Structure |
Total capacity(KVA) |
Size (L*W*H)(m) |
WTM- HT20 |
Φ20 |
20-70 |
0.5-1.5 |
0.9 |
200 |
horizontal |
25 |
4*3*2.6 |
WTM- HT89 |
Φ89 |
90-380 |
2-5.5 |
2.7 |
180 |
horizontal |
62 |
11*6*2.6 |
WTM- HT114 |
Φ114 |
180-550 |
2-6 |
5.4 |
190 |
horizontal |
130 |
22*8.5*2.4 |
WTM- HT165 |
Φ165 |
180-550 |
2-6 |
5.4 |
190 |
horizontal |
130 |
22*8.5*2.4 |
WTM- HT219 |
Φ219 |
350-700 |
3-8 |
7.2 |
190 |
horizontal |
180 |
28.5*9.5*2.4 |
WTM- HT325 |
Φ325 |
420-1100 |
4-12.7/4-10.5 |
3.8/300-600m |
120 |
horizontal |
260 |
45*15*4/48.5*15*4 |
WTM- HT508 |
Φ508 |
650-1600 |
6-19/6-16 |
4/200-600m |
90 |
horizontal |
350 |
66*18*5 |
WTM- HT610 |
Φ610 |
700-2000 |
6-19/6-16 |
4/200-600m |
80 |
horizontal |
380 |
74*18*5 |
