  • Spiral welded pipe mill

    Introduction of the spiral weld pipe mill
    Spiral weld pipe mill is used for spiral weld tube production, steel tubes of different diameters can be made with the same steel strip, same diameter from the steel strip with different widths. The forming part is the key equipment of the mill, spiral welded tube can be produced by single-side welding, double side welding or high frequency welding. The mill is composed of coil delivery car, uncoiler, 3-roll flattener, coil end welder, edge miller, main drive unit, spiral former, inner welder, outer welder,etc.
    Comprehensive applications of the spiral welded pipe:
    1. Transfer piping for high-intensity petroleum, natural gas with API standard.
    2. Transfer piping for low-pressure fluid flow, city gas and drainage pipeline.
    3. Pile driving tube for project.
    4. Steel tube for industrial structure.
    5. Other usages.

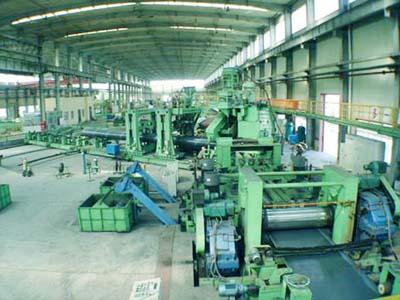

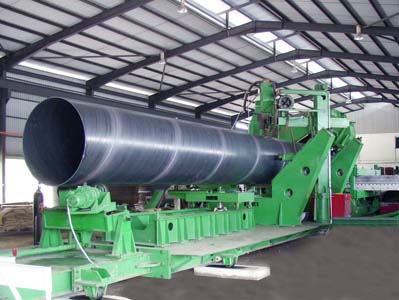

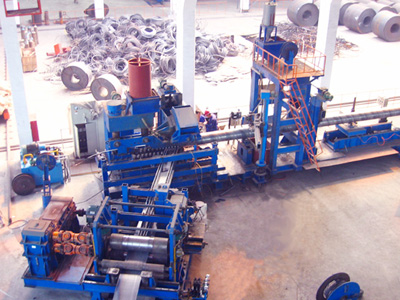

    φ219-φ1620 φ508-φ1820 φ508-φ2020 φ508-φ2400
    spiral weld pipe mill spiral weld pipe mill spiral weld pipe mill spiral weld pipe mill

    Model
    Welded pipe diameter (mm)
    Welded pipe thickness (mm)
    Strip width (mm)
    WTM-LXG-1620
    Φ219-Φ1620
    5-14
    400-1560
    WTM-LXG-1820
    Φ508-Φ1820
    8-20
    1100-1600
    WTM-LXG-2020
    Φ508-Φ2020
    8-20
    1200-2000
    WTM-LXG-2400
    Φ508-Φ2400
    8-20
    1200-2000
