Home » Slitting line » 6.0*650 automatic slitting line6.0*650 automatic slitting line
Main parameters :
Size:20000mm*6000mm*2000mm
Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
Material quality: steel coil
Thickness: 1.0-6.0mm
Width: 600mm
Coil I.D: f508mm
Coil O.D: f1500mm(mm)
Coil weight: 8T(max)
Slitting product:
Coil I.D: f508mm
Minimal width :20mm
Slitting number: 20(coil thickness2.0mm)
Electric power: 380V/50HZ/3PH
Capacity: 50KW
Speed: 0-80m/min
Slitting type: rolling shear

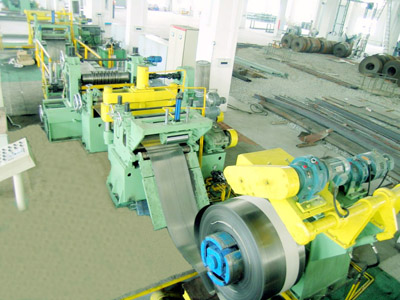

650 automatic slitting line

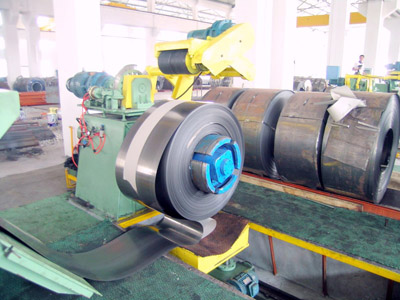

Decoiler of 650 slitting line

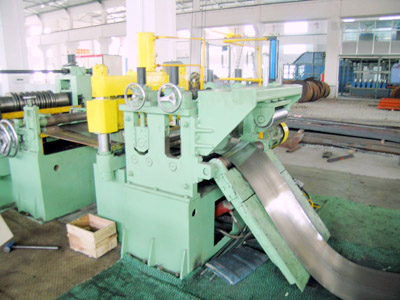

Slitter of 650 slitting line

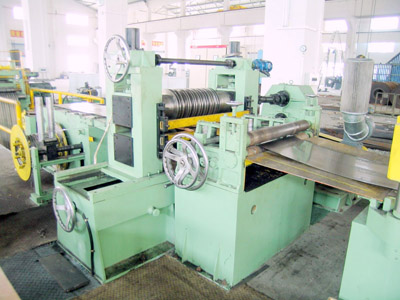

Edge material rewinder of 650 slitting line

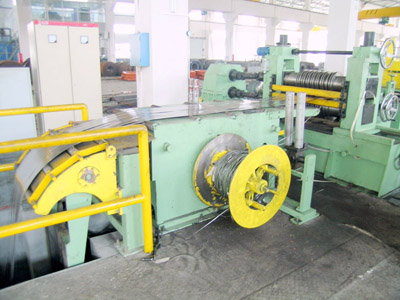

Tension station of 650 slitting line
Recoiler of 650 slitting line
Size:20000mm*6000mm*2000mm
Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
Material quality: steel coil
Thickness: 1.0-6.0mm
Width: 600mm
Coil I.D: f508mm
Coil O.D: f1500mm(mm)
Coil weight: 8T(max)
Slitting product:
Coil I.D: f508mm
Minimal width :20mm
Slitting number: 20(coil thickness2.0mm)
Electric power: 380V/50HZ/3PH
Capacity: 50KW
Speed: 0-80m/min
Slitting type: rolling shear
