       Home  »  Slitting line  »  1.5*850 automatic slitting line
    1.5*850 automatic slitting line

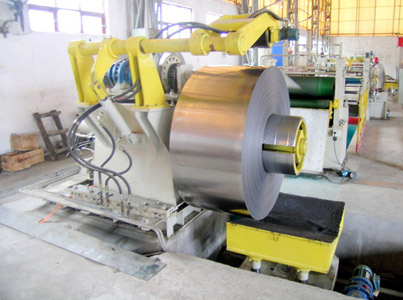

    • 850 slitting line

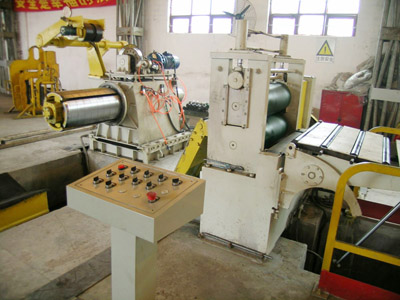

    • Decoiler of 850 slitting machine

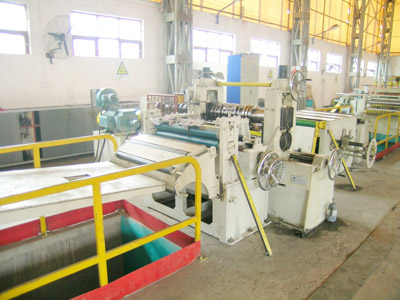

    • Slitter of 850 steel coil slitting line

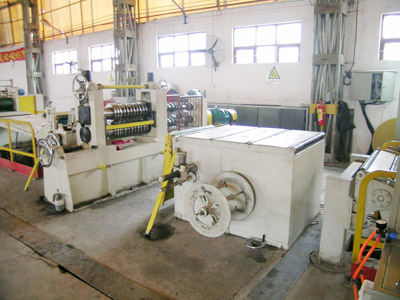

    • Edge material rewinder of 850 slitting line

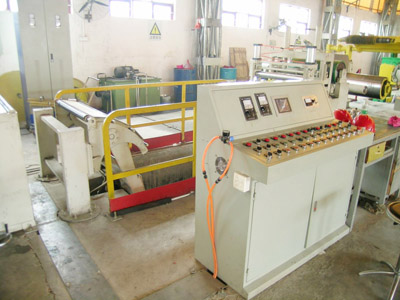

    • Electrical system of 850 slitting line

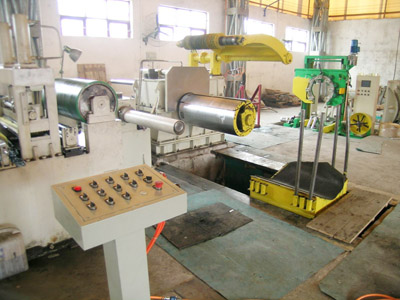

    • Tension station of 850 slitting line

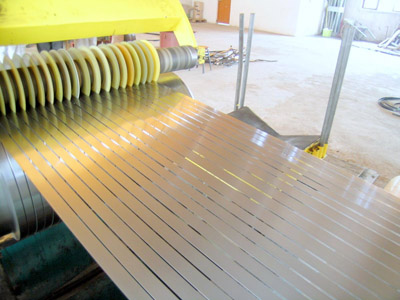

    • Slitting process of 850 slitting line

    Main parameters :
    Size:20000mm*6000mm*2000mm
    Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
    Material quality: steel coil
    Thickness: 0.25-1.5mm
    Width: 800mm
    Coil I.D: Φ508(mm)
    Coil O.D:Φ1500 (mm)
    Coil weight: 8t(max)
    Slitting product:
    Coil I.D: Φ508 (mm)
    Minimal width :10mm
    Slitting number: 30(coil thickness0.5mm),16(coil thickness1.5mm)
    Electric power: 380V/50HZ/3PH
    Capacity: 100KW
    Speed: 0-120m/min
    Slitting type: rolling shear
