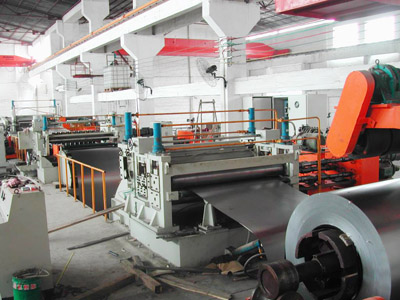

    3.0*1400 automatic slitting line

    3.0*1400 automatic slitting line

    Main parameters:
    Size:25000mm*8000mm*2000mm
    Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
    Material quality: steel coil
    Thickness: 0.4-3.0mm
    Width: 1350mm
    Coil I.D: Φ508mm
    Coil O.D:Φ1600mm(mm)
    Coil weight: 15t(max)
    Slitting product:
    Coil I.D: Φ508mm
    Minimal width :10mm
    Slitting number: 60(coil thickness0.5mm), 25(coil thickness1.5mm)
    Electric power:380V/50HZ/3PH
    Capacity: 180KW
    Speed: 0-120m/min
    Slitting type: rolling shear
