1.5*1300 semi-automatic slitting line
Descriptions:
Components of the 1300 semiautomatic slitting line: coil car, hydraulic decoiler, slitter, hydraulic tension station, hydraulic recoiler
Main parameters:
Size(mm):20000*6000*2000
Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
Material quality: steel coil
Thickness(mm): 0.2-1.5
Width(mm): 1250
Coil I.D(mm): f508
Coil O.D(mm): f1500
Coil weight: 11t(max)
Slitting product:
Coil I.D: f508mm
Slitting tolerance thickness:1.0mm?.03mm(max)
Slitting burr thickness: 1.0mm=0.03mm(max)
Minimal width :12mm
Slitting number: 20(coil thickness0.5mm)
16(coil thickness1.5mm)
Electric power: 380V/50HZ/3PH
Capacity: 100KW
Speed: 0-80m/min
Slitting type: rolling shear

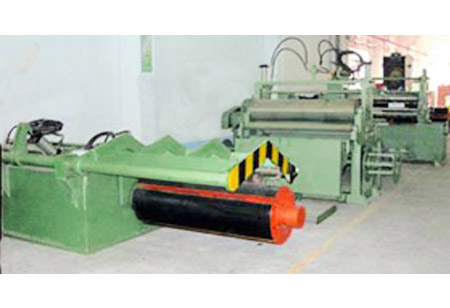

1300 semi-automatic slitting line

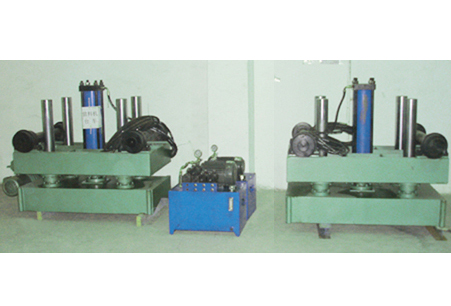

Ccoil car

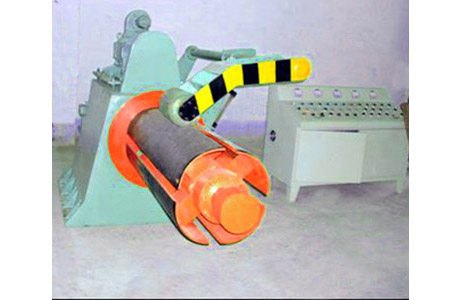

Hydraulic decoiler
Slitter

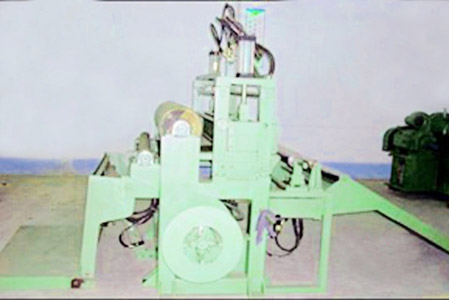

Tension station

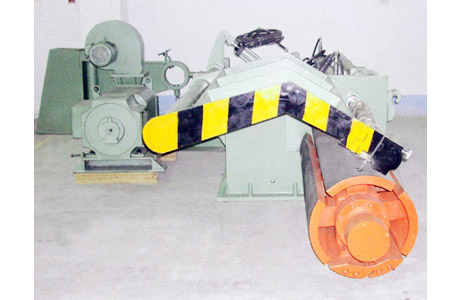

Hydraulic recoiler
Components of the 1300 semiautomatic slitting line: coil car, hydraulic decoiler, slitter, hydraulic tension station, hydraulic recoiler
Main parameters:
Size(mm):20000*6000*2000
Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
Material quality: steel coil
Thickness(mm): 0.2-1.5
Width(mm): 1250
Coil I.D(mm): f508
Coil O.D(mm): f1500
Coil weight: 11t(max)
Slitting product:
Coil I.D: f508mm
Slitting tolerance thickness:1.0mm?.03mm(max)
Slitting burr thickness: 1.0mm=0.03mm(max)
Minimal width :12mm
Slitting number: 20(coil thickness0.5mm)
16(coil thickness1.5mm)
Electric power: 380V/50HZ/3PH
Capacity: 100KW
Speed: 0-80m/min
Slitting type: rolling shear
