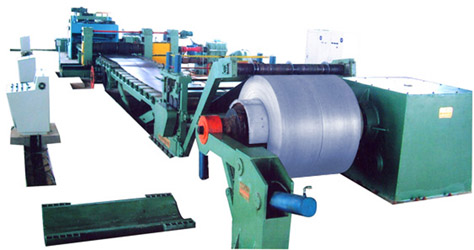

12*2200 slitting line
12*2200 slitting line
Descriptions:
Slitting line mainly composed of uncoiler, feeding device, slitter and recoiler. Its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling, welding pipe, cold bend forming, stamping as billet. At the same time, change different material blade can slit various metal coils.
Main parameters:
Coil thickness: 3-12mm
Coil width: 900-2200mm
Coil weight: 35T
Product width:100mm
Slitting strips: 2-5
Slitting speed: 20m/min
Area needed: 38*11
Shaft Diameter: 320mm
